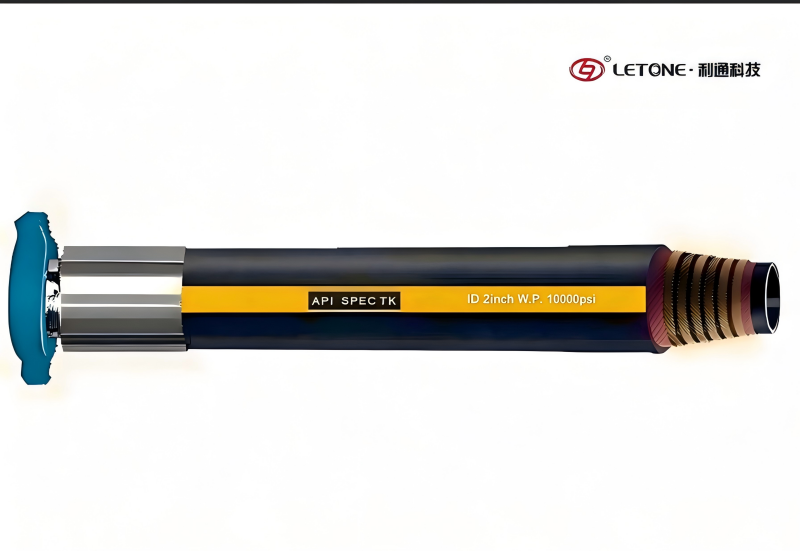

API 7K High Pressure Mud Hose 2 Inch 10000psi Oilfield Drilling Cementing Steel Wire Wrapped Rubber

1. Application Fields and Working Conditions of ‌API 7K High Pressure Mud Hose 2 Inch 10000psi Oilfield Drilling Cementing Steel Wire Wrapped Rubber Hose‌

As a core drilling and production component strictly following API Spec 7K international standards, the ‌API 7K High Pressure Mud Hose 2 Inch 10000psi Oilfield Drilling Cementing Steel Wire Wrapped Rubber Hose‌ covers the full-process operations of oilfield drilling, cementing and workover. In drilling operations, it acts as a flexible connector for cementing manifolds, stably conveying water-based mud and oil-based mud under high pressure, and adapts to complex operating environments ranging from plain well sites to deserts and offshore platforms.
For working condition adaptation, this hose can operate stably in a wide temperature range from -20°C to +121°C, fully meeting the extreme temperature difference requirements of oilfield field operations. Its 10000psi rated working pressure enables it to withstand instantaneous high-pressure shocks during cementing, and the hose body has hydrogen sulfide corrosion resistance to adapt to special conveying demands of sulfur-containing oil and gas fields. The minimum bending radius of 1000mm allows flexible installation even in narrow well site equipment layouts, effectively absorbing vibration generated by operating drilling equipment and reducing fatigue loss at manifold connections.

2. Precision Structural Design of ‌API 7K High Pressure Mud Hose 2 Inch 10000psi Oilfield Drilling Cementing Steel Wire Wrapped Rubber Hose‌

This hose adopts a layered high-strength structural design, with each layer specially optimized for high-pressure oilfield conveying scenarios. All core parameters corresponding to the structure are integrated into the dimension specification table below, which can be directly used as reference for type selection:

Dimension Specification Parameters

The layered structure of this hose is designed for the above parameters: the inner tube is made of composite UPE and NR&SBR synthetic rubber, corresponding to the indicators of high abrasion resistance and wide medium compatibility. The reinforcement layer adopts multi-layer wound high-strength super-flexible steel wire, which is the core support for 10000psi high pressure resistance. The outer cover is made of weather-resistant special synthetic rubber to ensure long-term outdoor anti-aging performance. The integrated union or integrated flange fittings ensure full bore consistency between the hose and the connection end, eliminating throttling dead spots in medium conveying.

3. After-sales Support System of ‌API 7K High Pressure Mud Hose 2 Inch 10000psi Oilfield Drilling Cementing Steel Wire Wrapped Rubber Hose‌

Qualified products from regular manufacturers are equipped with a complete full-cycle after-sales system. For professional manufacturers based in Luohe, all hoses are fully tested according to the test pressure in the table before delivery, with complete API 7K certification documents to meet the access requirements of international oil and gas projects.
The product comes with a maximum 12-month warranty. During the warranty period, free replacement or on-site maintenance is provided for non-human-induced quality issues. Manufacturers can also provide customized length and fitting selection services according to actual well site conditions, with value-added services including installation guidance and regular pressure inspection, to extend the service life of the hose and reduce fluid conveying safety risks in oilfield operations.
